D Series Conical Cylindrical Gear Reducer

Overview:

D series conical cylindrical gear reducer is a common reduction device in ordinary reducers. The reducer has a very modular design and construction and provide excellent performance and engineering advantages,strong load-bearing capacity, small volume, and low noise. It is suitable for mechanical transmission where the input shaft and the output shaft are arranged at right angles.Conical cylindrical gear reducers made of high-quality alloy steel by carburizing and quenching, and the hardness of the gear reaches HRC58-62. It is produced according to the national standard (GB19004-88), mainly including four series of DBY/DBYK/DBZ (Two stage----8~14), DCY/DCYK/DCZ(Three stage----16~50).

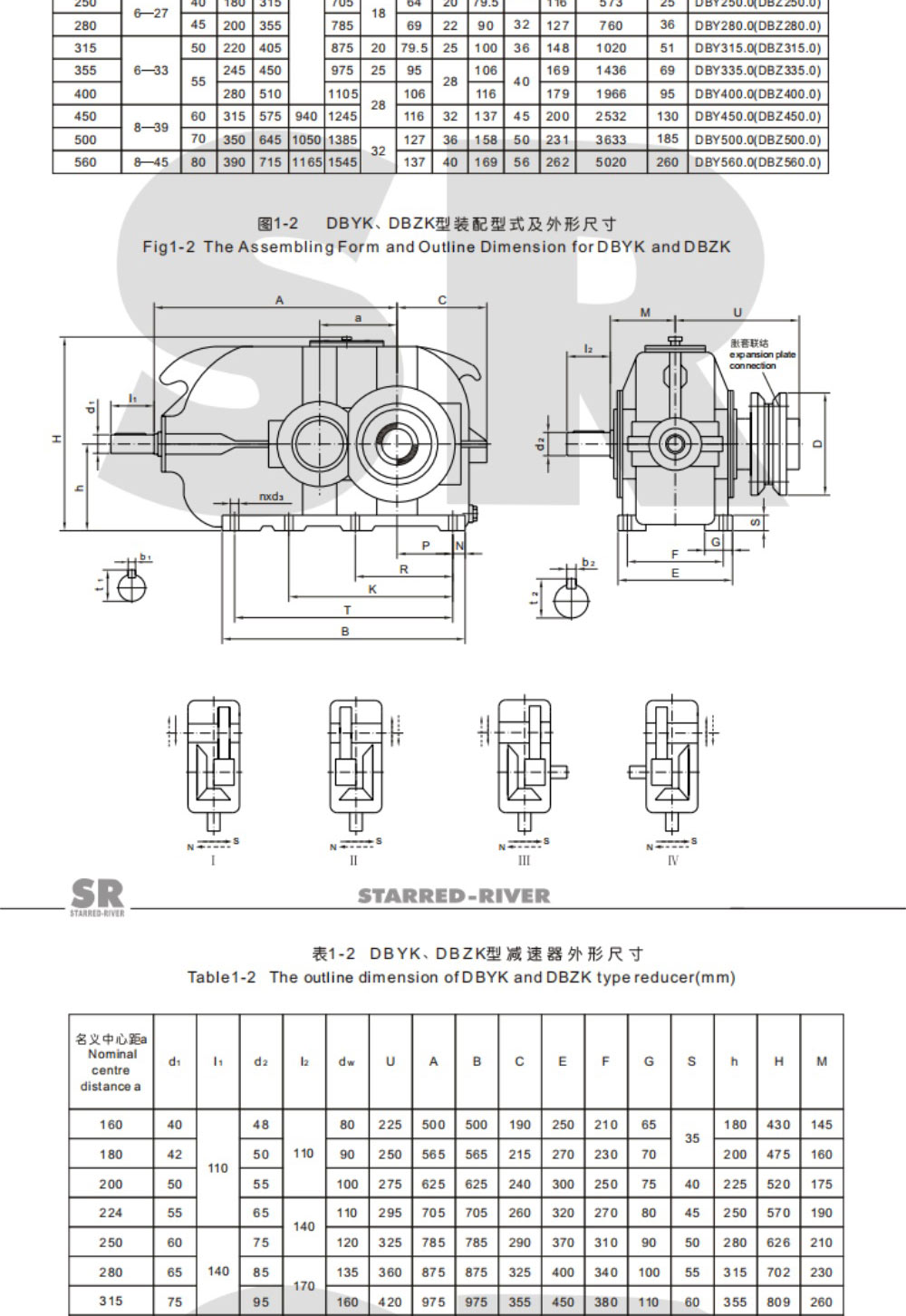

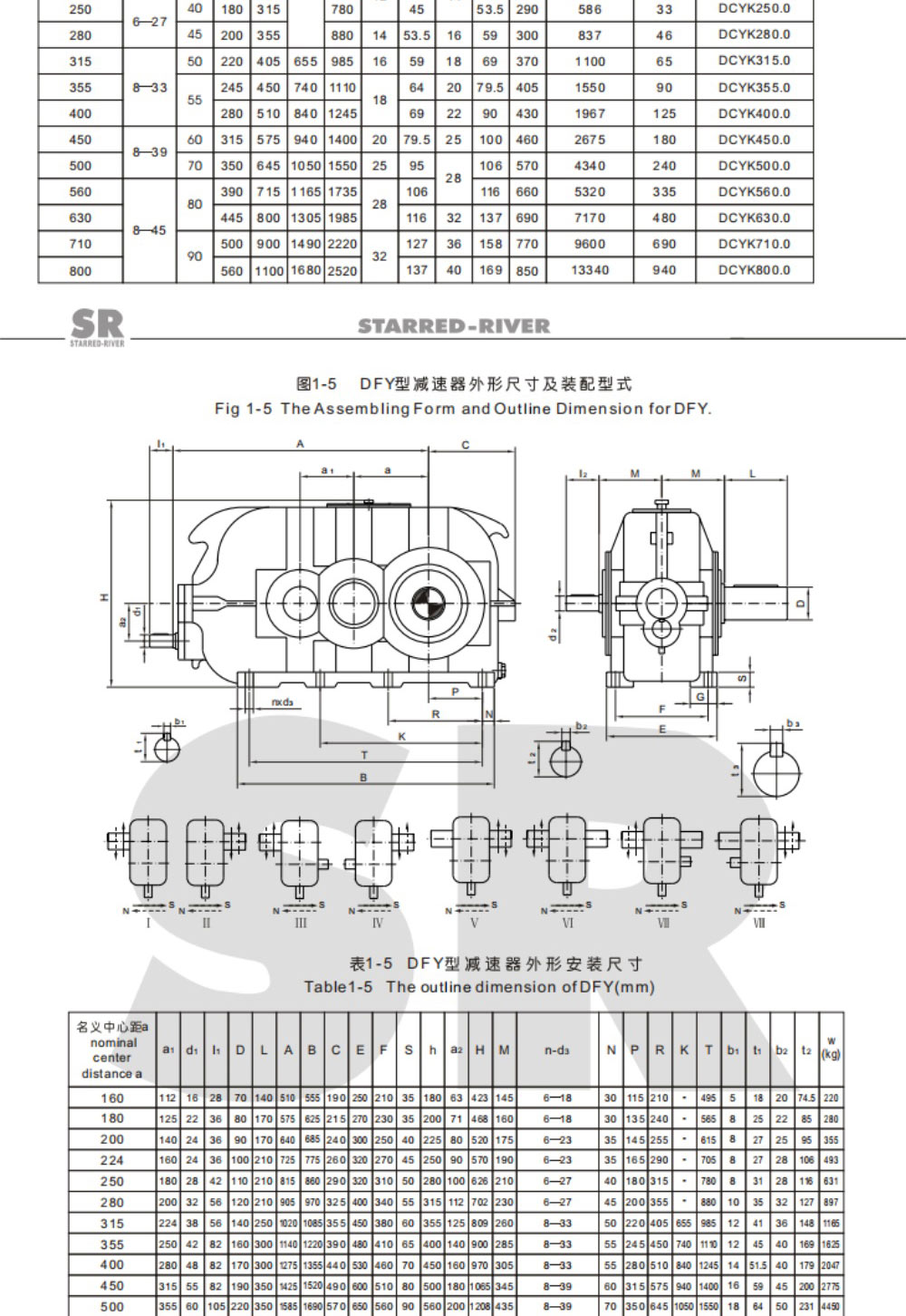

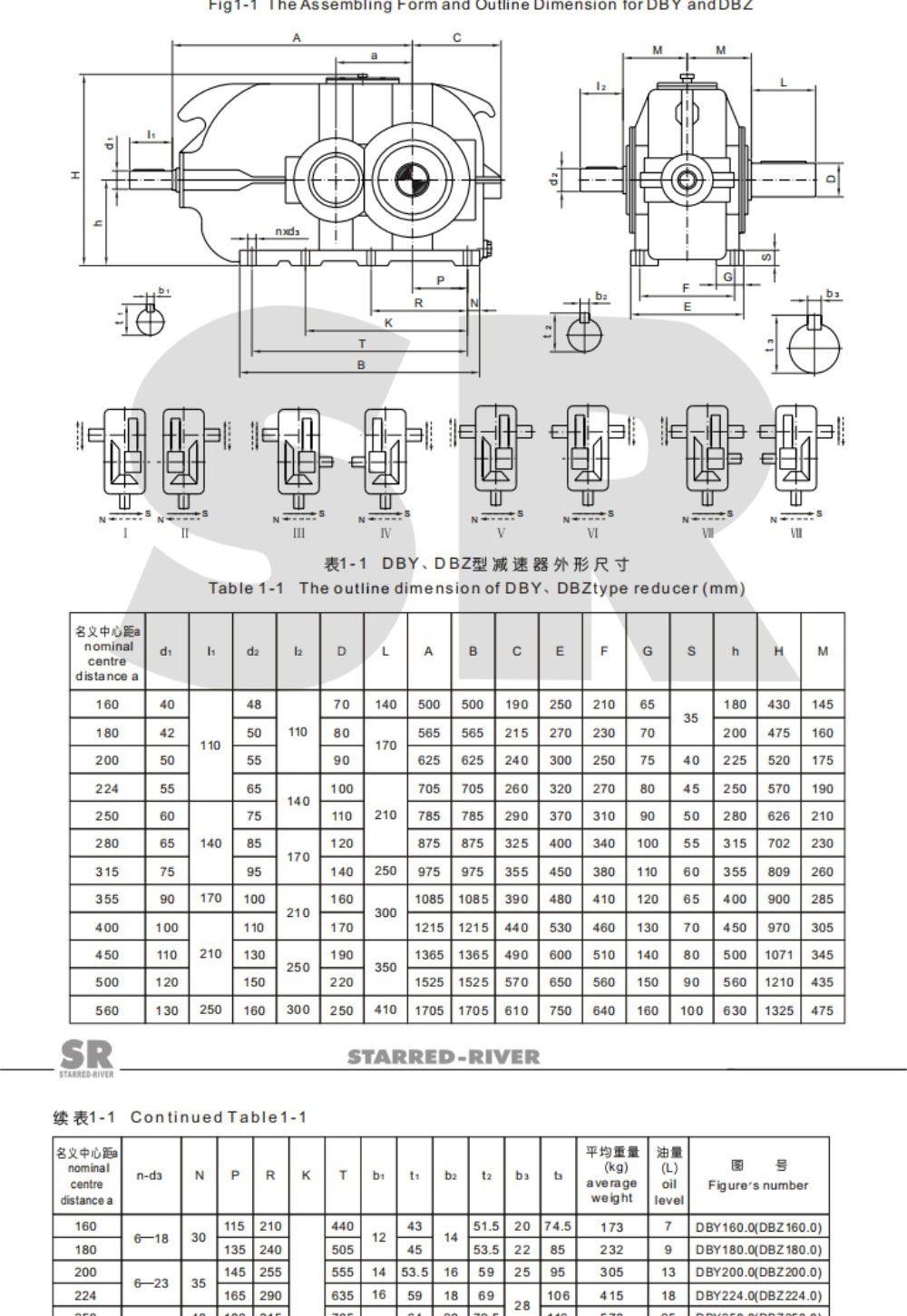

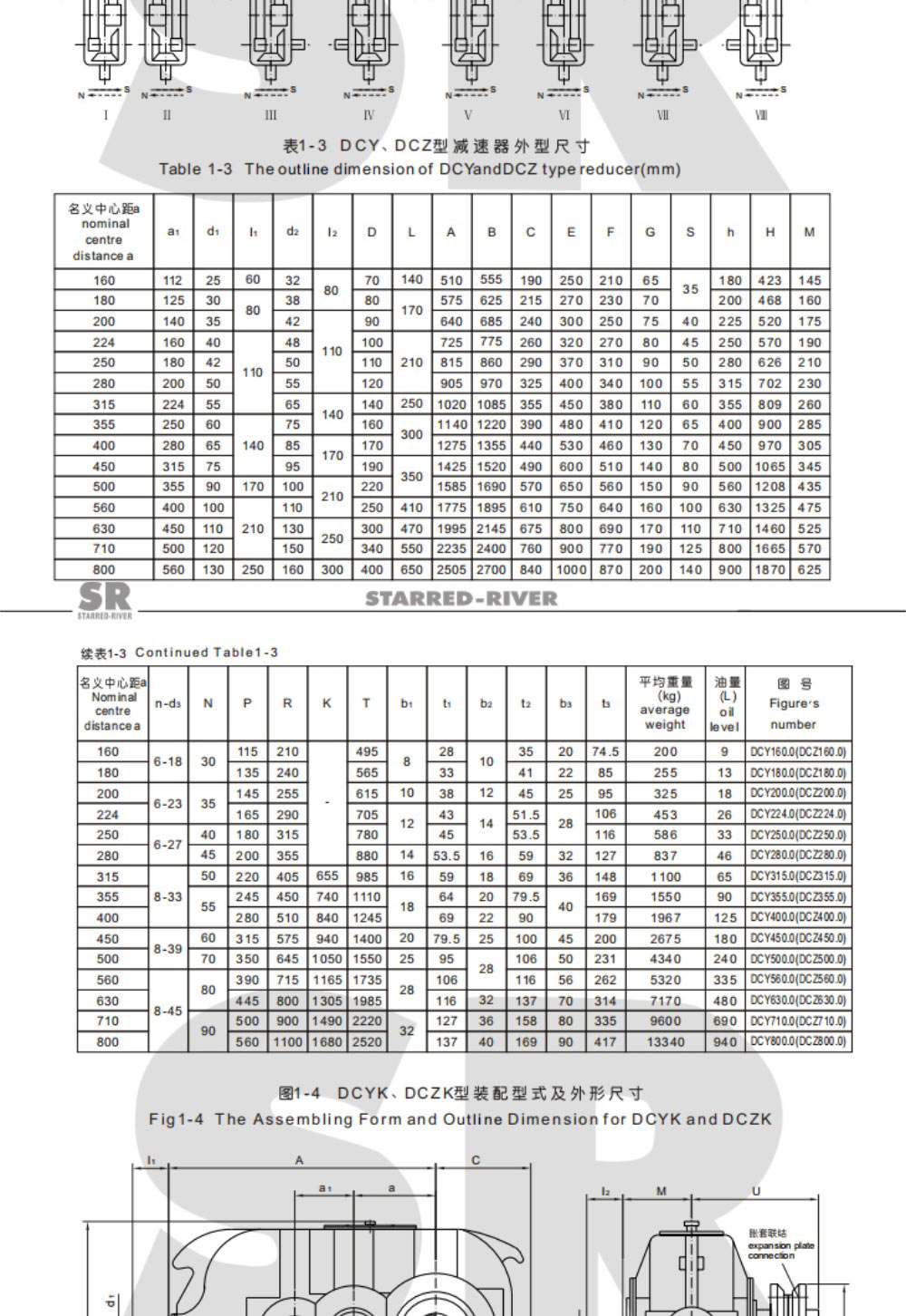

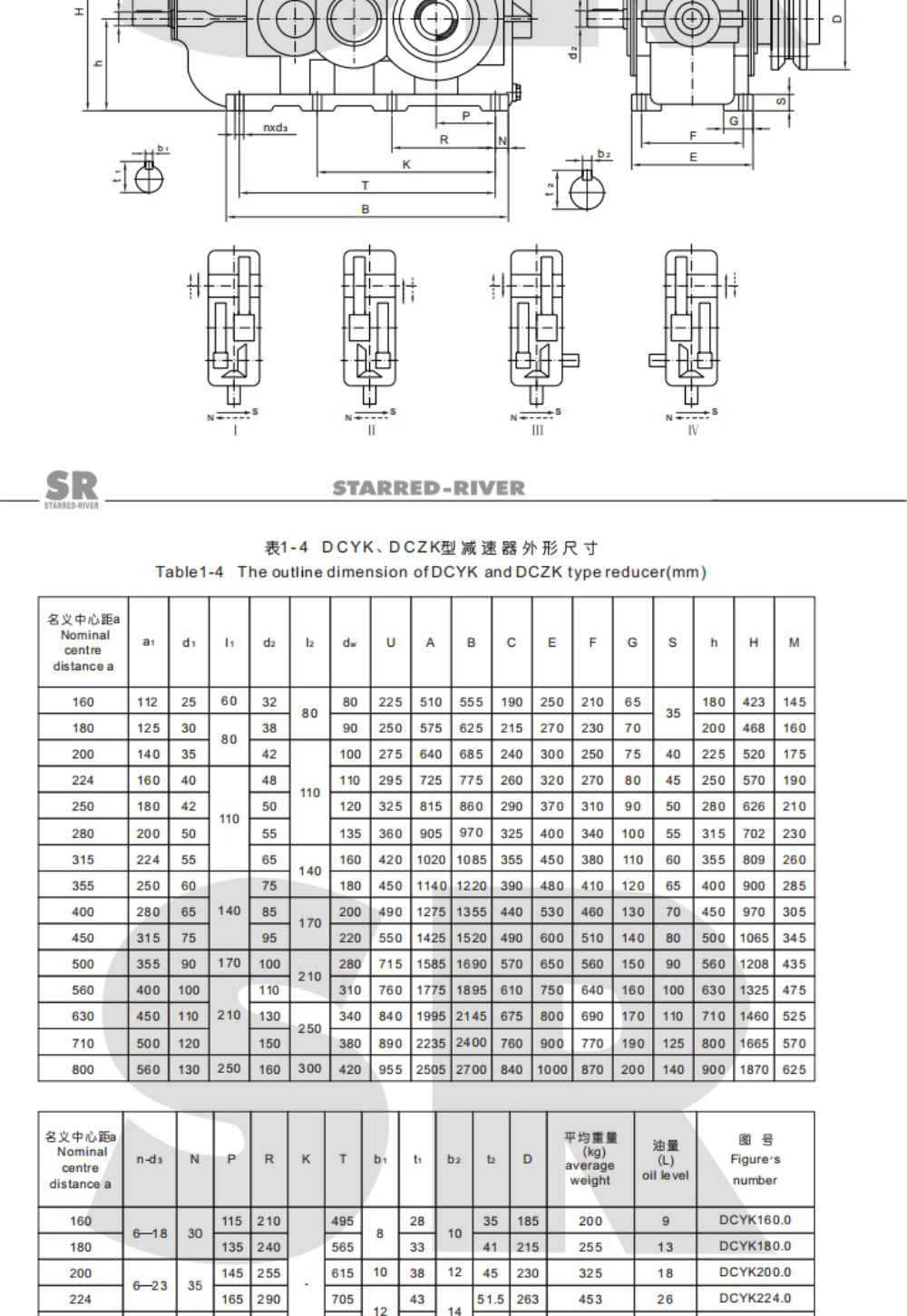

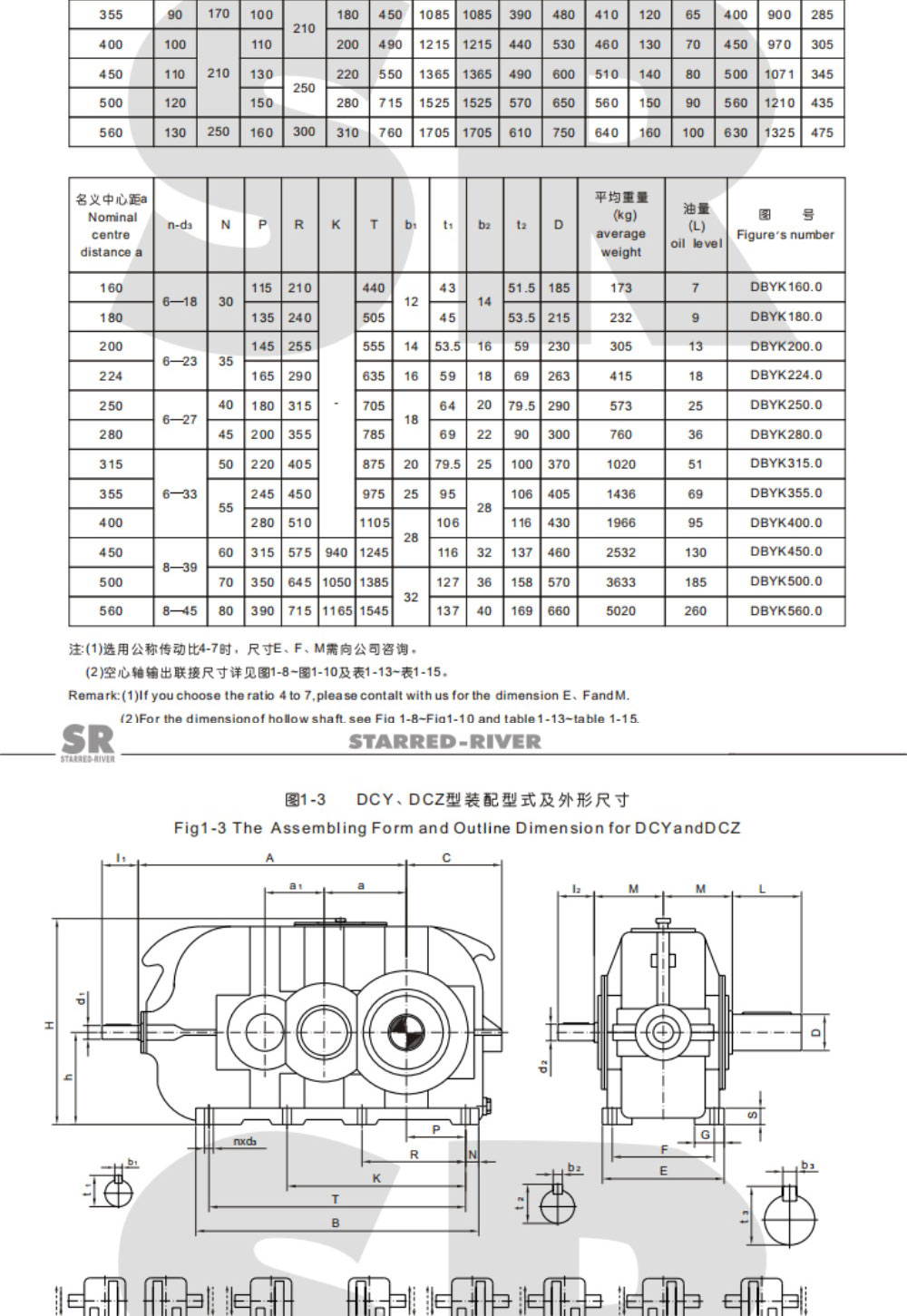

Technical parameters:

Assembly form:

--Foot mounted, solid shaft and hollow shaft or with shrink disk connection.

--Can be equipped with a backstop to meet the needs of one-way rotation.

--Can be equipped with high power to achieve high carrying capacity.

Characteristics：

1. High bearing capacity, low noise, small size
2. light weight, high efficiency and long service life.
3. The gearbox is made of high-quality alloy steel after carburizing and quenching, and the hardness of the gear reaches HRC58-62.

Model:

DBY、DBYK、DBZ: 160, 180, 200, 224, 250, 280, 315, 355, 400, 450, 500, 560

DCY、DCYK、DCZ: 160, 180, 200, 224, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710, 800

Application area：

Conical cylindrical gear reducer is mainly used in various transportation machinery such as belt conveyors, and can also be used in the transmission mechanism of various general machinery such as metallurgy, mining, construction, cement, light industry, and energy.

Product pictures:

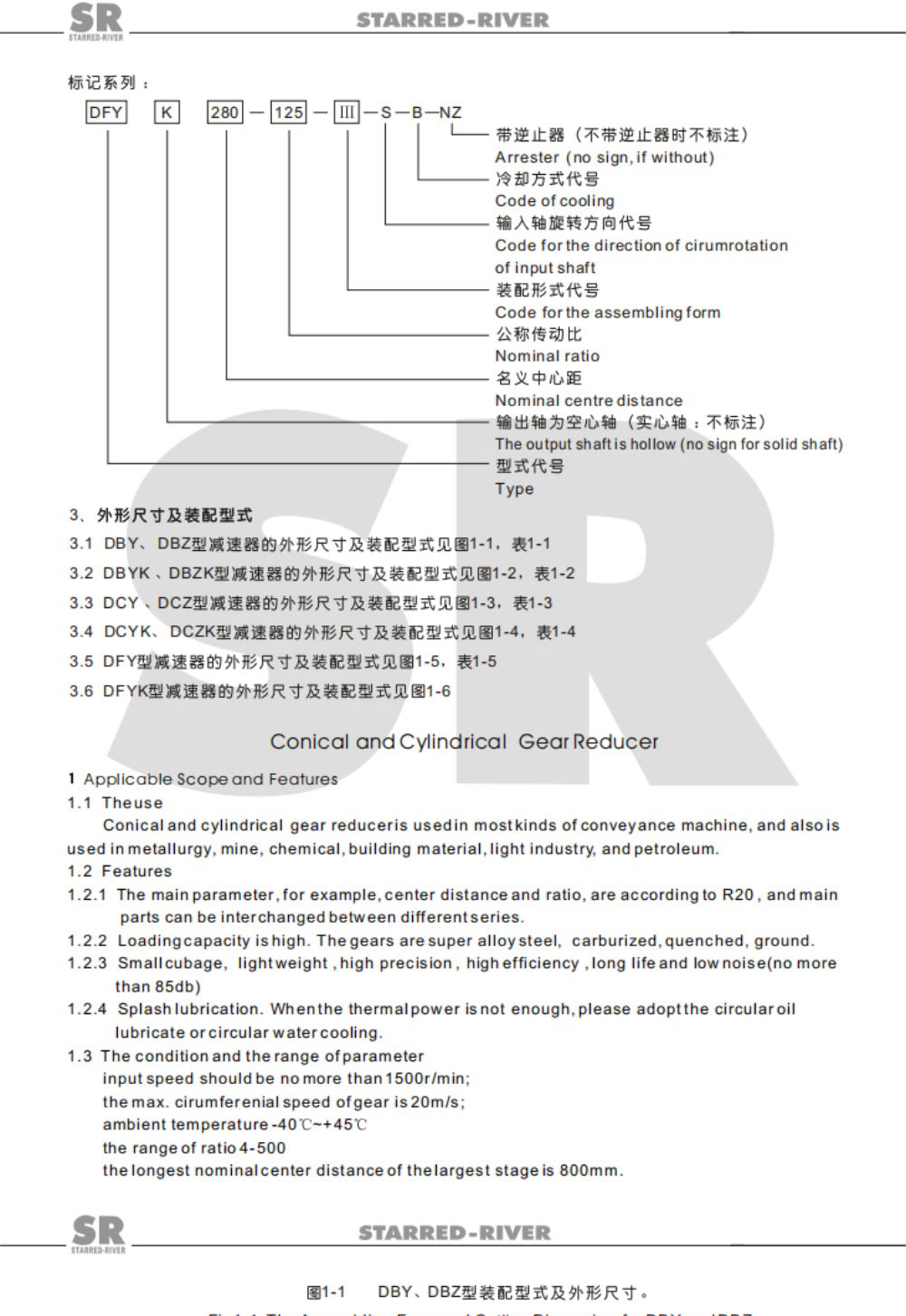

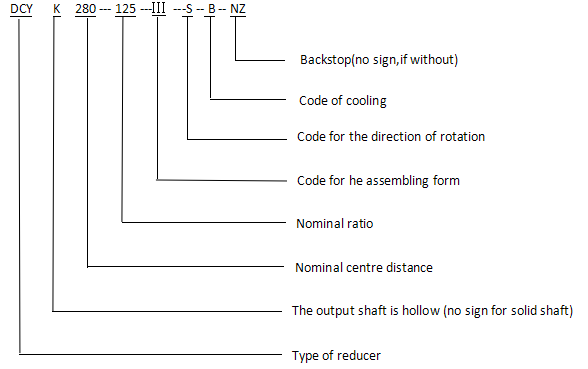

Order symbol:
