Double-stage 8-14 5 types
Three-stage 16-50 11 types
Four-stage 56-355 17 types
The hardness of the tooth surface ：60±2HRC.
The gear of the orthogonal shaft industrial gearbox is made of special steel through advanced processing technology and carburizing and hardening technology, and its strength and life are much higher than that of the worm gear reducer. The orthogonal shaft industrial gearbox is not restricted by the direction of output shaft, and is suitable for horizontal and vertical installation. There are 33 types of specifications for the two-stage to four-stage transmission. It can provide various output shaft types and hollow shaft series products, so that users can choose and install more flexibly and conveniently.

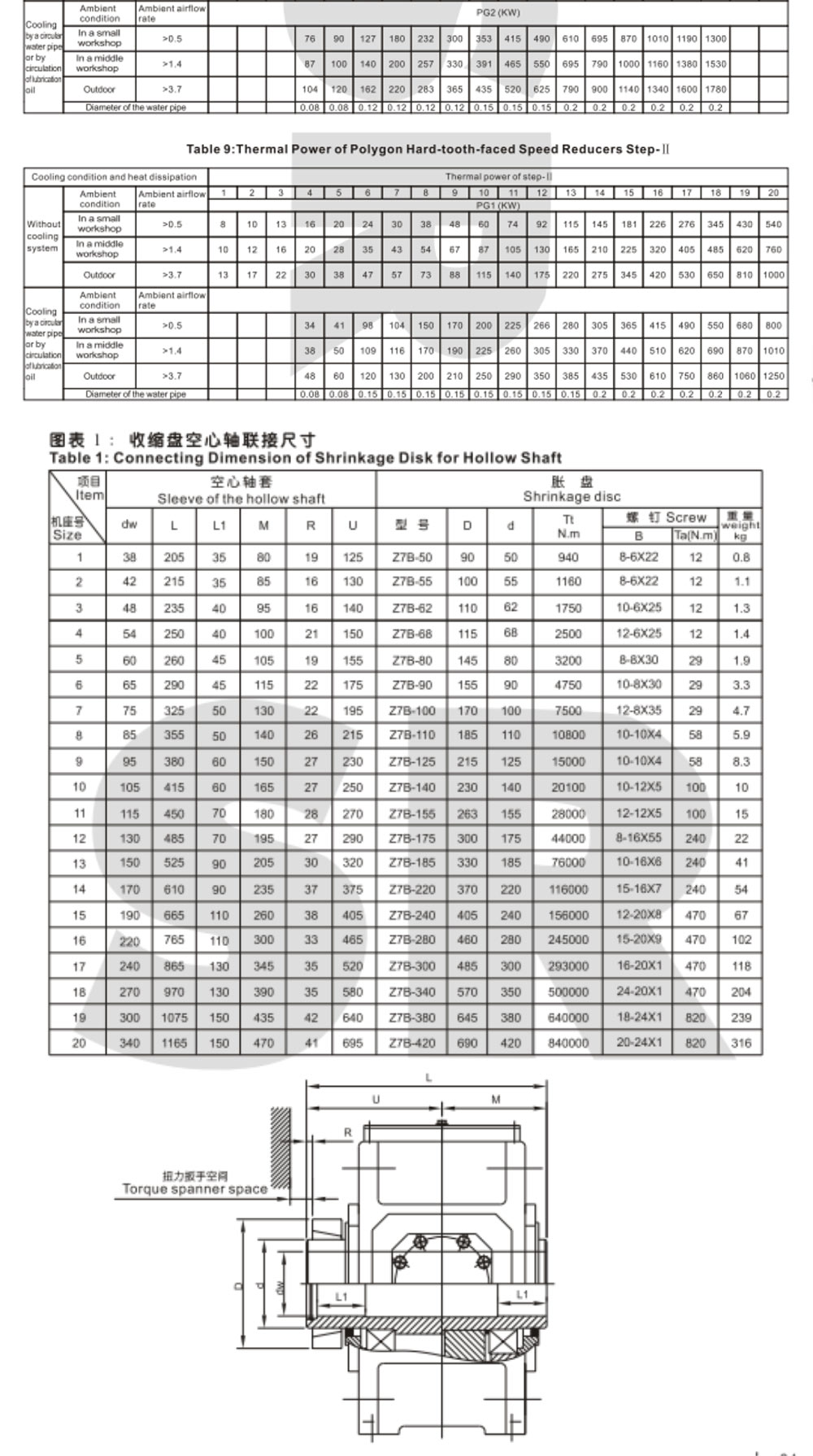

--Stages 2-4 have solid shafts, flat key hollow shafts, hollow shaft with shrink disk .

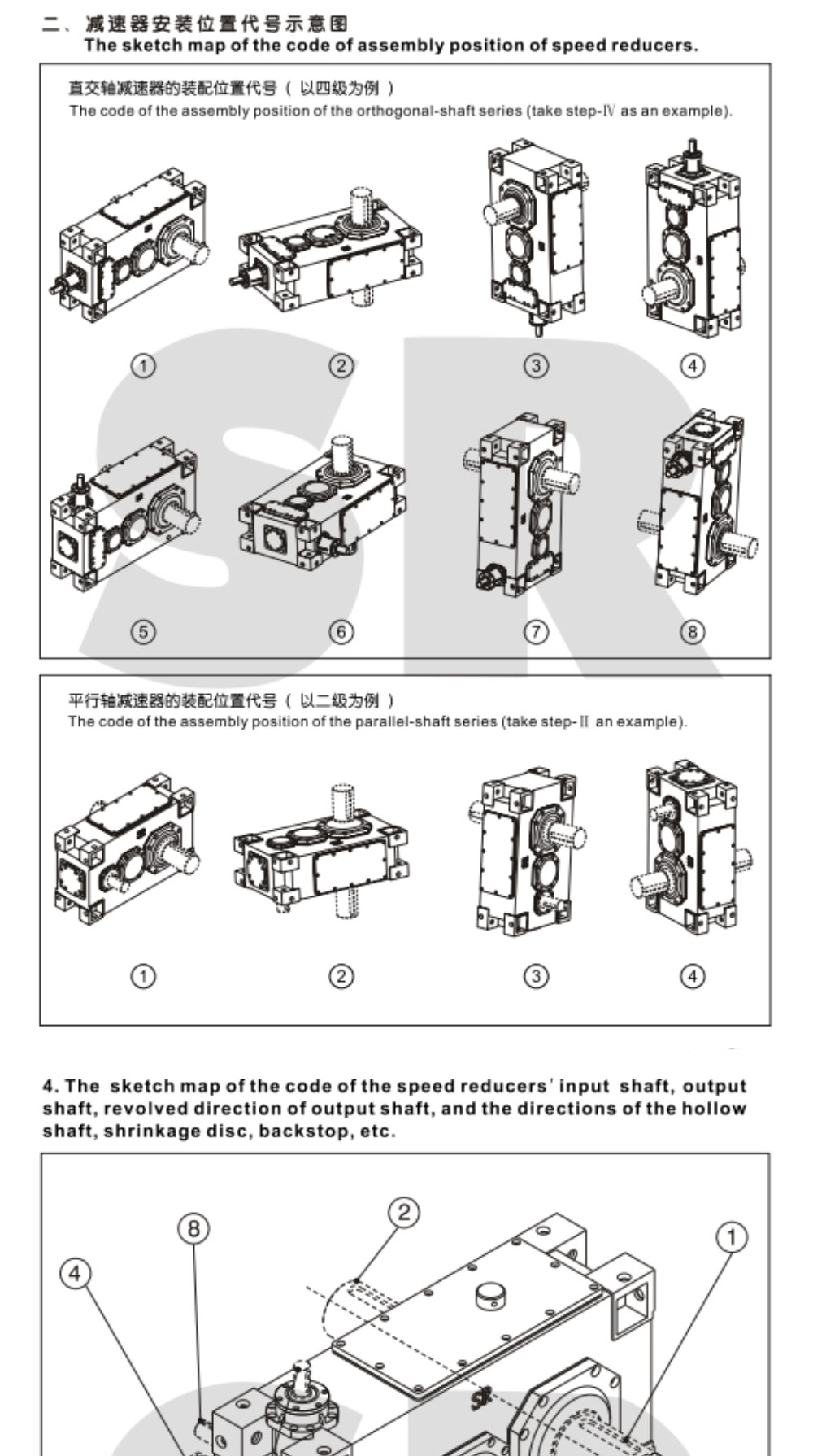

--Three output ways, six mounting surfaces and eight mounting positions, can be equipped with backstop to meet the needs of one-way rotation, can be equipped with high power to achieve high load capacity.
1). Low noise
Compared with bevel gears and turbines, the contact area is larger, the transmission capacity is stronger, and the operation silence has no vibration.
2). High efficiency
Compared with bevel gears and turbines, the reduction ratio is higher and the low temperature rise is higher.
3). Lightweight, compact, cost-saving, space-saving
Integrated design, firm and compact, to minimize the weight of the motor, save installation space.
4). Strong and durable
Gears are made of molybdenum steel with high strength and reliable and durable shell. A kind of
5). Can adapt to a variety of working conditions, provide a variety of brake motor specific voltage motor.
Working conditions :
1).The peripheral speed of gear transmission of the orthogonal shaft industrial gearmotor is no more than 20m/s, and the speed of high-speed shaft is no more than 1500r/min.
2).The operation ambient temperature of reducer is -40℃～+45℃. (When it is lower than 0℃, one shall heat the lube up to be more than 0℃ before starting)
3).The reducers can run both CW and CCW direction.
They are widely used in construction engineering, railway, road, ship, petroleum, coal mine, metallurgy industries. They are popular in Chinese market, and they are gaining popularity in international market, such as Singapore, India, Korea and Holand.
|Business Type:||Manufacturer, Exporter|
|Terms of payment and delivery:||Contract shall prevail|
|Minimum order quantity:||1 Set|
These are all customized products according to
customer's requirement. If needed, we can
provide custom sevice for you.
