Technical parameters:
Nominal ratio:
Single stage : 1.25-5.6 14 type
Double stage: 6.3--20 11 type
Three stage: 22.4--100 14 type
Four stage: 112-500 14 type
Input speed: 750 ~ 1500 rpm
Overview:
Parallel Shaft Industrial Gearboxes adopts high rigidity cast iron box with ribs and high quality alloy steel for gears. The surface is carburized and hardened. The gear grinding process is smooth, low noise, high bearing capacity, low temperature rise and long service life.

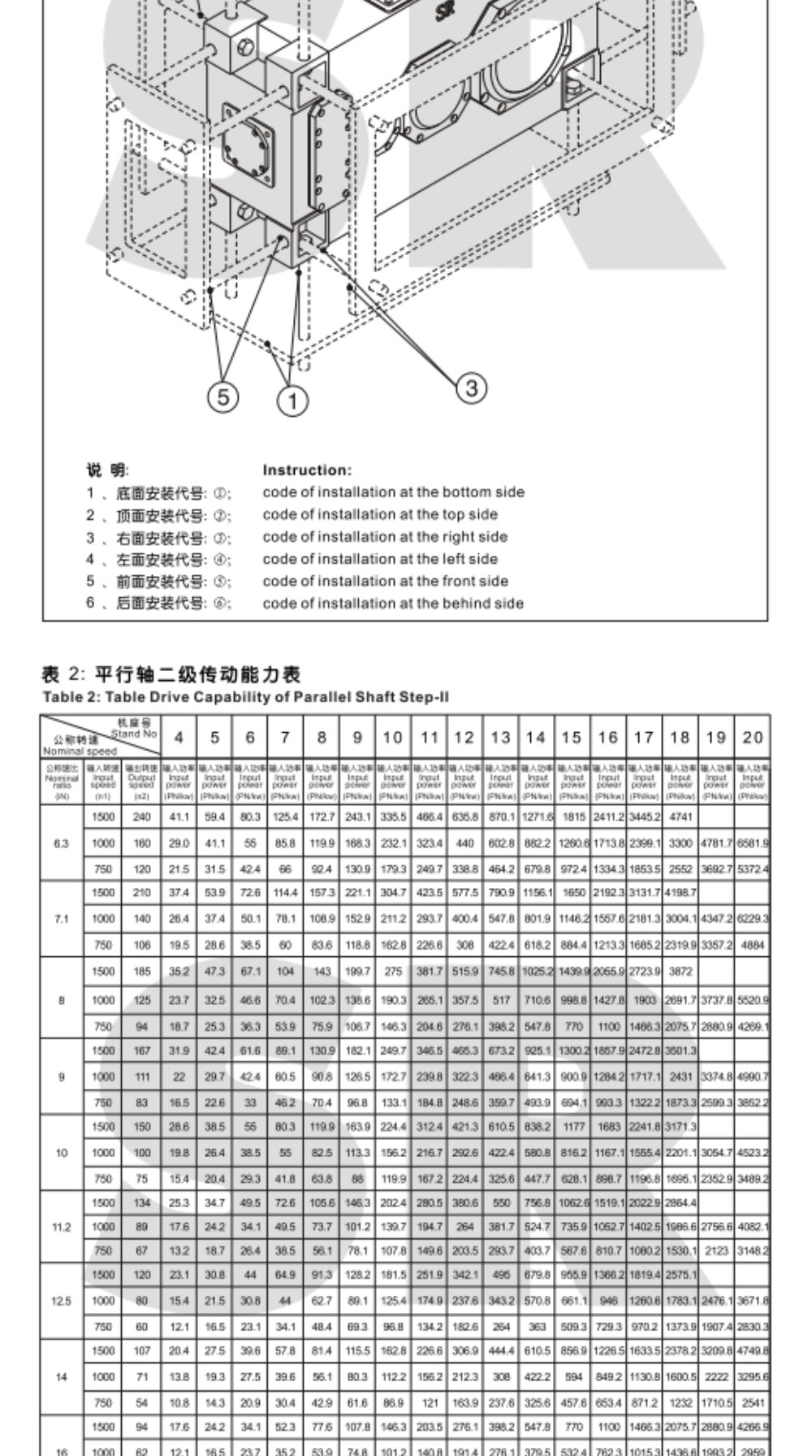

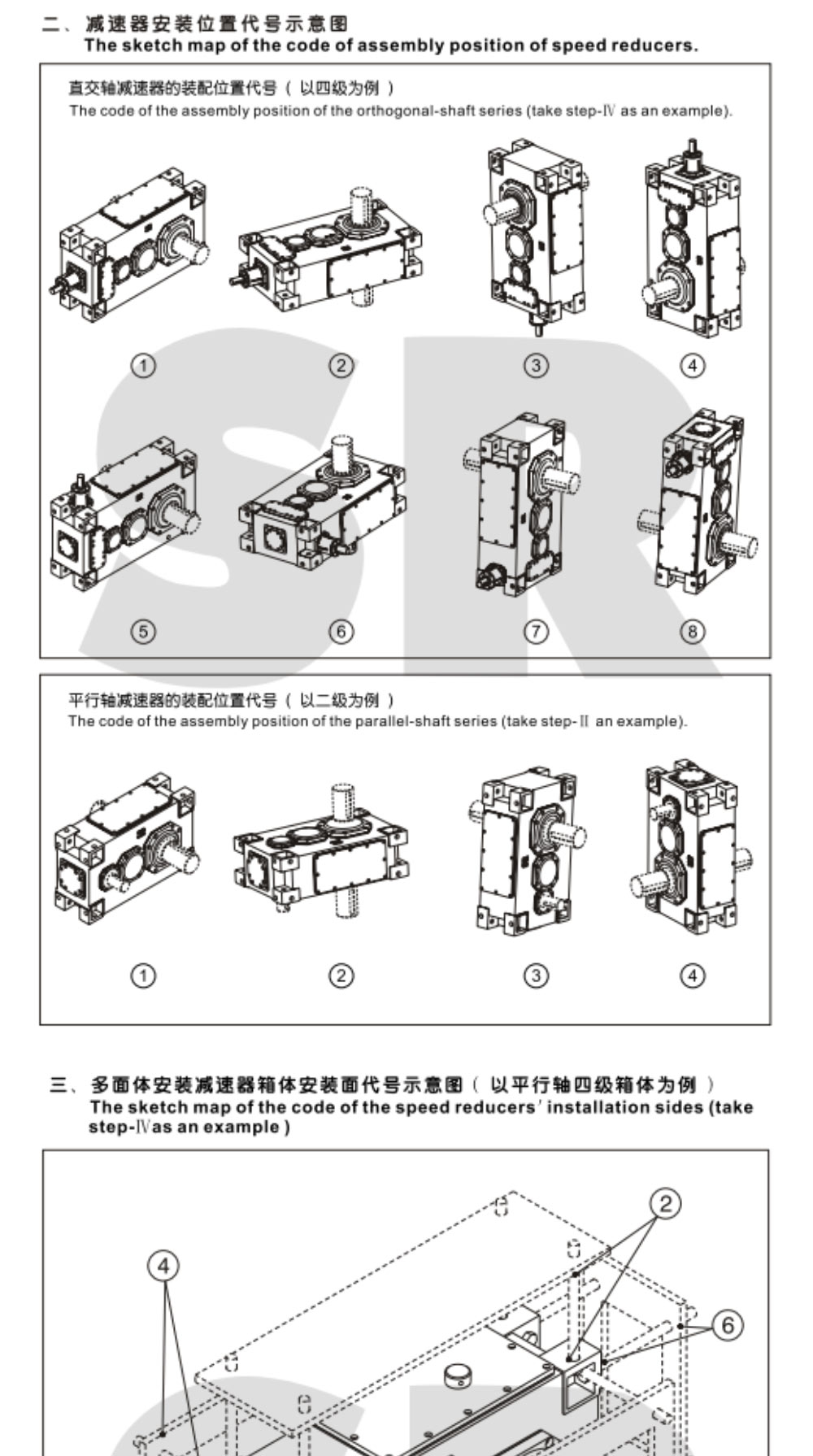

Assembly form:

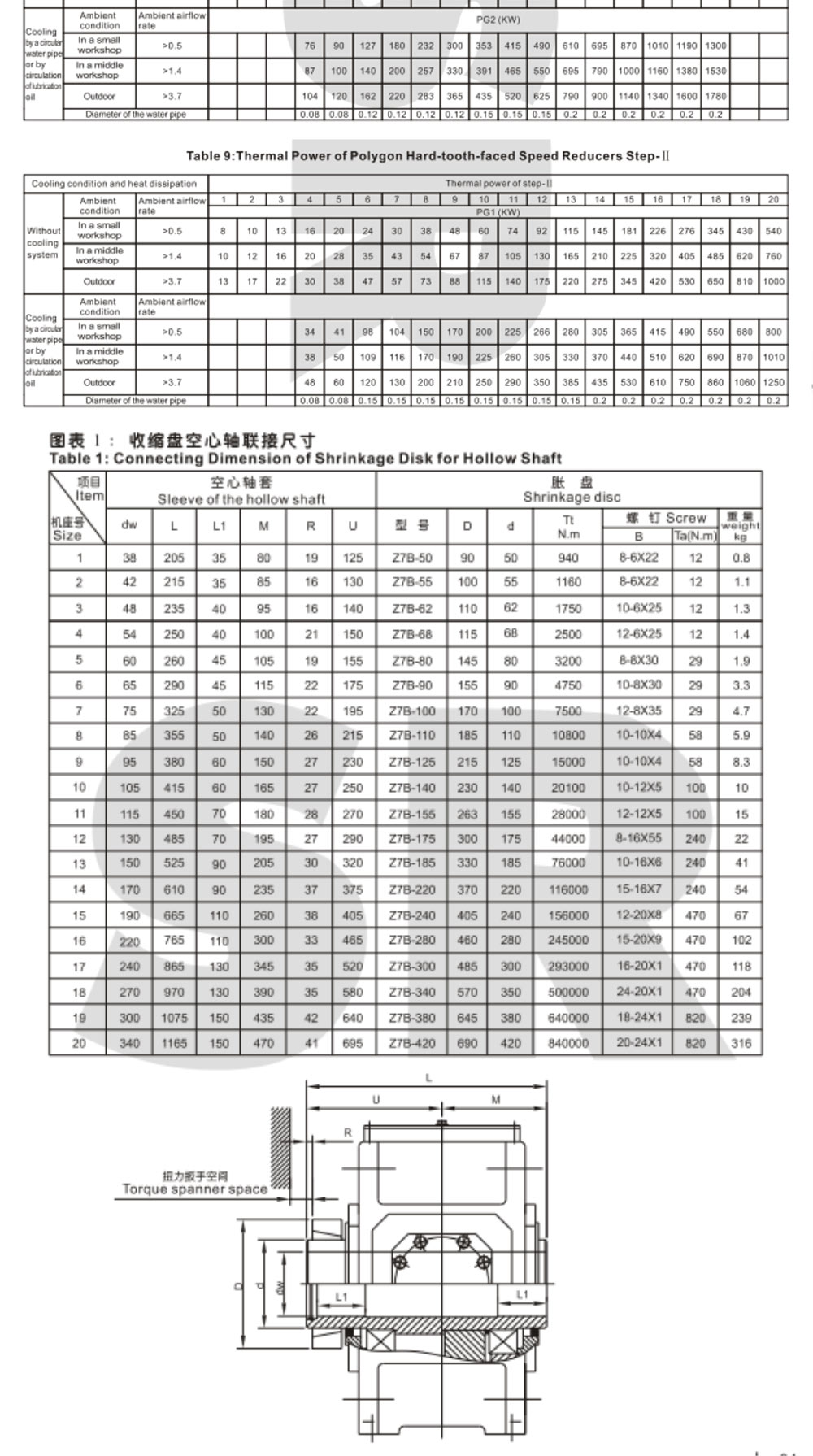

-- Class 2-4 have solid shaft, flat key hollow shaft, shrink disk hollow shaft
-- Three output ways, six mounting surfaces and four mounting positions, can be equipped with backstops to meet the needs of one-way rotation, can be equipped with high power to achieve high load carrying capacity.
Characteristics：
1). Small size, beautiful appearance, high bearing capacity and high efficiency
2). Long service life and easy installation
3). The power range of the distribution motor is wide and the transmission ratio is fine.
4)It can be widely used in various industries which need deceleration equipment.
Applicable conditions:
1).Max.speed of high-speed shaft shall not be more than 1500r/min.
2).Peripheral speed of gear shall not be more than 20m/s.
3).Working environmental temperature is -40~+45°C.
4).Can be used for run in both positive and negative direction.
Product Pictures：
