NGW-S Series Planetary Gear Reducer

NGW-S Series Planetary Gear Reducer

Features:

(1) Compact structure, large transmission power and high carrying capacity

(2) High transmission efficiency

(3) Large transmission ratio

(4) Various types of assembly, multi-faceted installation, wide applicability

(5) The material, gear precision and bearing capacity are at the advanced level among similar products.

0086 182 5796 3886 Contact Us
  • Description
  • Additional Information

  • Overview:

    NGW-S series planetary gear reducer is a combination of spiral bevel gear transmission and planetary gear transmission, including two series (S42-S122), three stages (S73-S123) two series of NGW-S planetary gear reducer The design basis of this product is JB3723-84. It is mainly suitable for general mechanical equipments in metallurgy, mining and overweight transport. 

    The maximum speed of the high-speed shaft does not exceed 1500r/min; the peripheral speed of the gear does not exceed 13m/s; the working environment temperature is -40℃-45℃. Cooling measures can be taken to run in both forward and reverse directions. (Forward, clockwise is the preferred direction)



    Technical parameters:

    Specifications

    Scope of ratio

    Rotation of input-shaft (rpm)

    Input power

    (KW)

    Output torque (N.m)

    Double-stage
    NGW-S42 ~NGW-S122

    11.2~80

    750~1500

    2.33~563.6

    1910~49714

    Three-stage
    NGW-S73 ~ NGW-S123

    56~500

    750~1500

    1.5~199.5

    7820~68310



    Equipment method:

    --Foot installment,flange installment

    --Big power can be equipped to complete the capacity of heavy bearing.



    Model:

    NGW-S42,NGW-S52,NGW-S62,NGW-S72,NGW-S82,NGW-S92,NGW-S102,NGW-S112,NGW-S122

    NGW-S73,NGW-S83,NGW-S93,NGW-S103,NGW-S113,NGW-S123

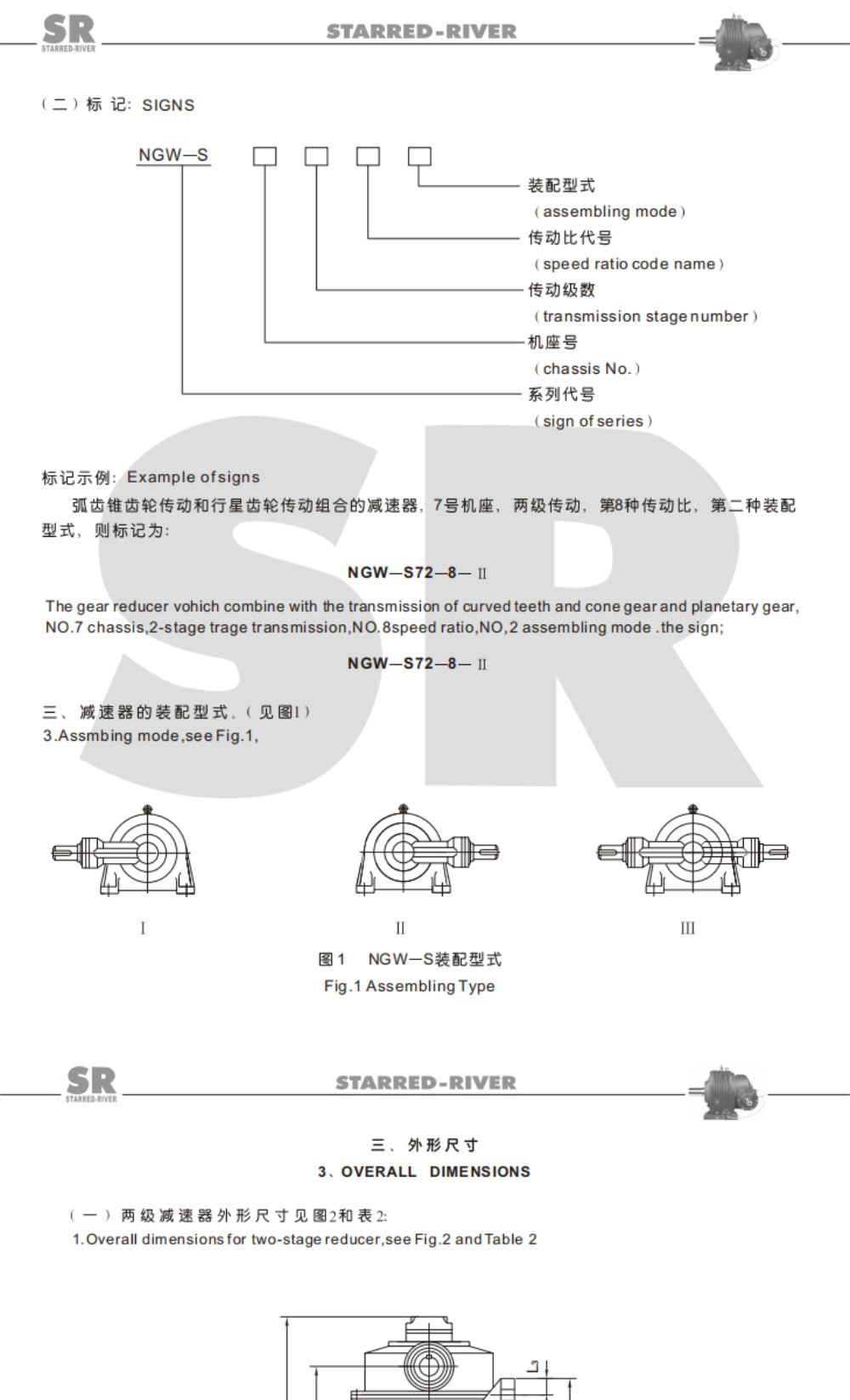

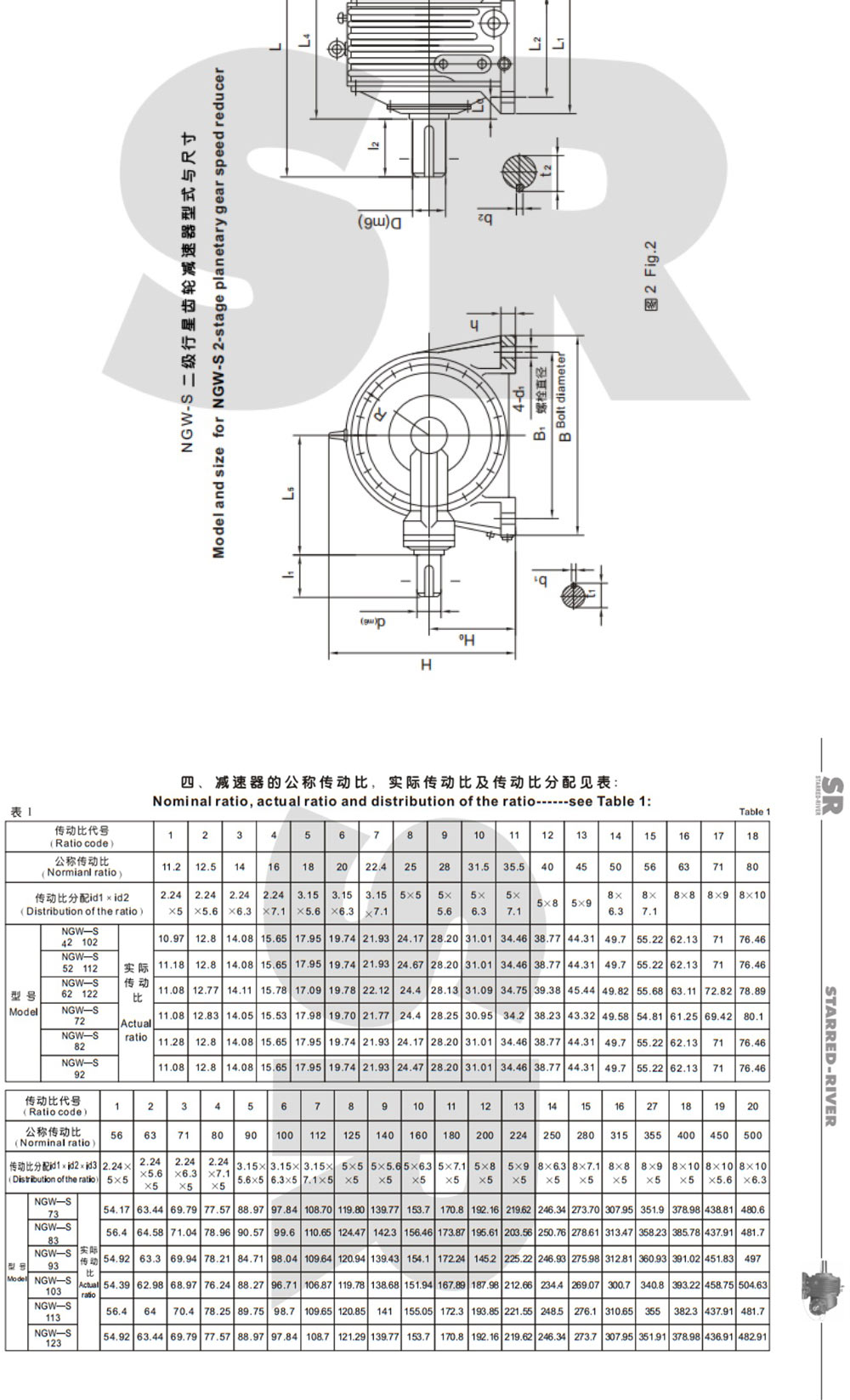

    Product pictures:

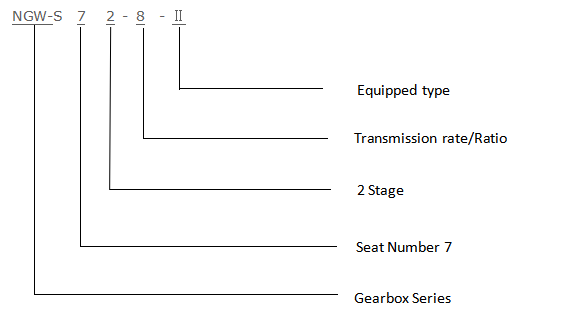

    Order symbol:



    Hangzhou Starred-River Machinery Co.,Ltd have been play an important role in China Custom NGW-S Series Planetary Gear Reducer Suppliers and NGW-S Series Planetary Gear Reducer factory since 1982. We have an independent production workshop, which can provide 24/7 guaranteed supply. Offer customized solution worldwide.

Our factory:

factory of Hangzhou Starred-River Machinery Co.,Ltd



Our certificates:

certificate of Hangzhou Starred-River Machinery Co.,Ltd
