Technical parameters:
Power: 0.12KW-200KW
Torque: 200N.m-50000N.m
Transmission ratio: 5-33000
Technical parameters:
Power: 0.12KW-200KW
Torque: 200N.m-50000N.m
Transmission ratio: 5-33000
Overview:
K series bevel helical gearboxes, manufactured in accordance with international technical requirements, have a high technological content; save space, reliable and durable, high overload capacity, power up to 200KW; low energy consumption, superior performance, reducer efficiency up to 95%. It is easy to install and requires almost no maintenance. Particularly suitable for the field of synchronous control systems and screw jacks.
Assembly form:
--Can be equipped with various motors.
--Installation method: foot installation, hollow shaft installation, flange installation, torque arm installation.
--Input method: motor direct connection, motor belt connection or input shaft, connection flange input.
--Output method: hollow shaft output or solid shaft output.
Basic working conditions
Temperature: -40 ℃ - + 45 ℃
Relative humidity: 15% ~ 90%
Characteristics:
1). Low energy consumption, superior performance, reducer efficiency up to 95%.
2). Save space, reliable and durable, high overload capacity, power up to more than 200 KW.
3). K series bevel helical gear units has small vibration, low noise and high energy saving.
4).Vertical output, compact structure, large torque transmission on hard tooth surface.
5). Low vibration, low noise, superior performance and good sealing performance.
6). Can work continuously in harsh environments with corrosion, humidity, etc.
Model
K37/K47/K57/K67/K77/K87/K97/K107/K127/K157/K167/K187
KA37/KA47/KA57/KA67/KA77/KA87/KA97/KA107/KA127/KA157/KA167/KA187
KF37/KF47/KF57/KF67/KF77/KF87/KF97/KF107/KF127/KF157/KF167
KAF/KAB/KAZ37/47/57/67/77/87/97/107/127/157/167

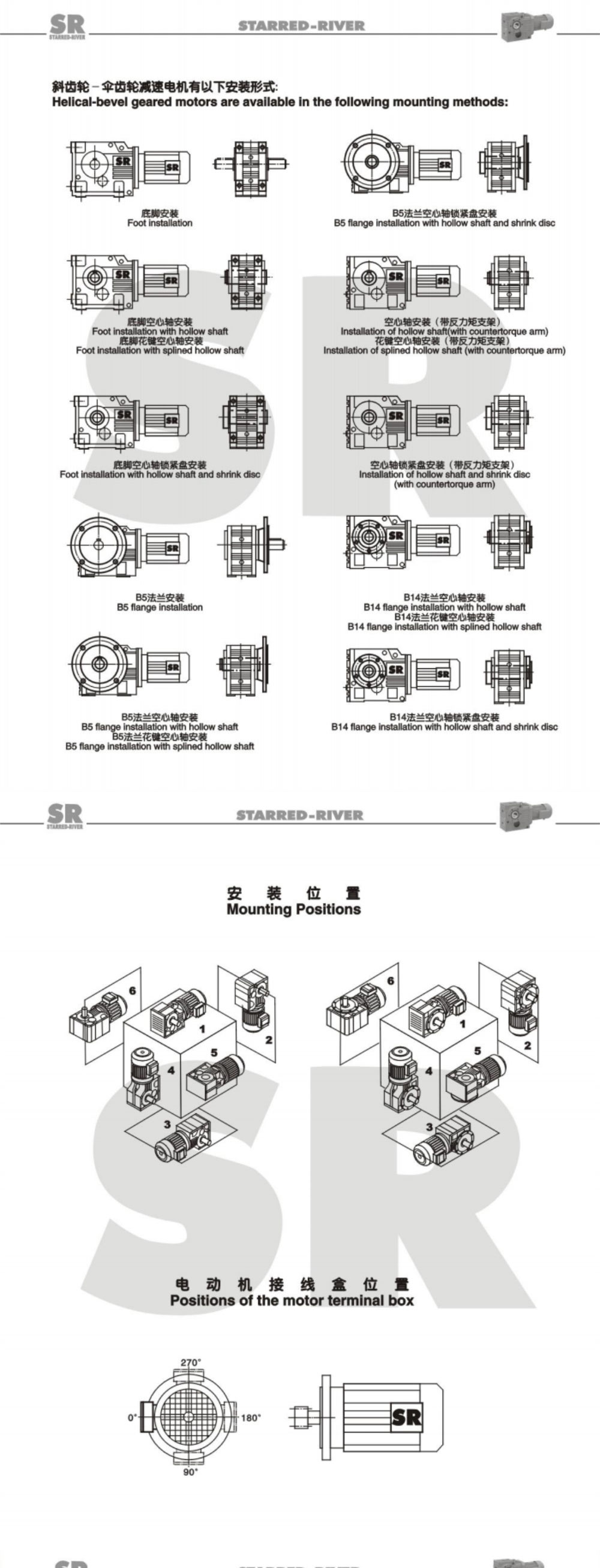

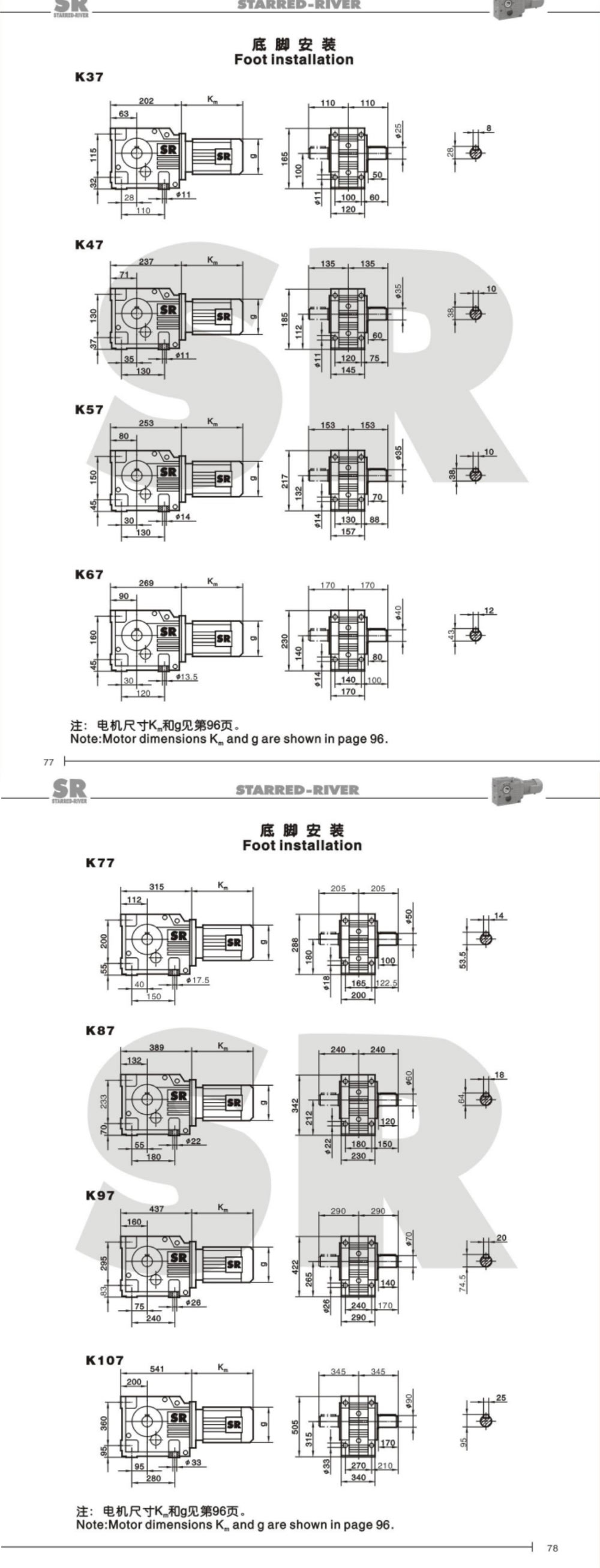

Product pictures:

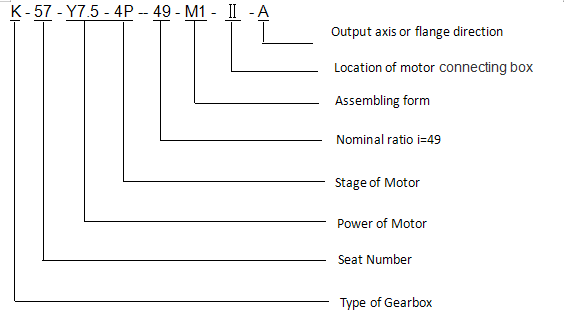

Order symbol:
Location: | China |
Business Type: | Manufacturer, Exporter |
Brands: | STARRED-RIVER |
Certificate: | WCS ISO9001 |
Terms of payment and delivery: | Contract shall prevail |
Minimum order quantity: | 1 Set |
Price: | Consultation |
Packing details: | Box |
Our factory:
Our certificates:
