Helical Gearboxes

Overview:

R series helical gearboxes is a machine that realizes mechatronics, high transmission efficiency, low energy consumption, and is mostly used in metallurgy, petroleum, mining, mixer, sewage treatment and other machines.

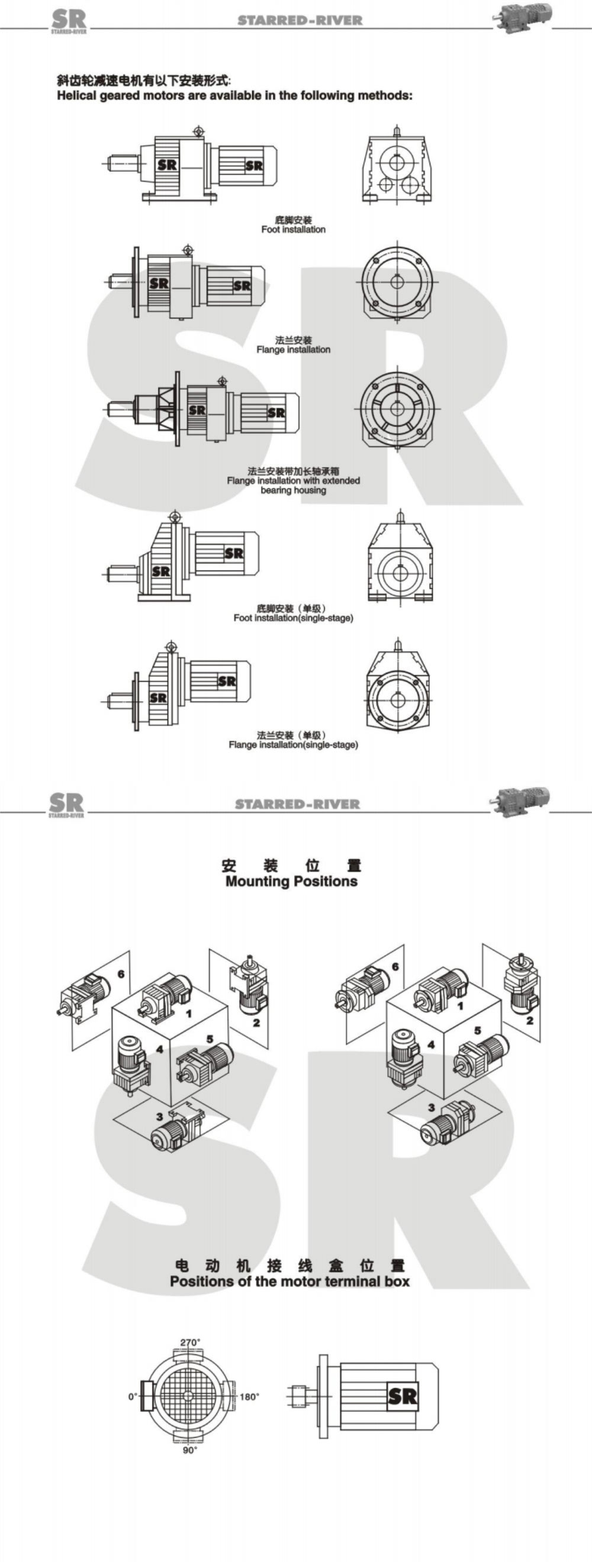

Equipment method:

R: Foot mounting

RF: flange mounting

RX: Single-stage foot mounting

RXF: single stage flange mounting

R..R: Combination of two models

Characteristics:

1). Use high-quality forged steel material, rigid cast iron box.

2). low energy consumption, superior performance, reducer efficiency up to 95%.

3). Low vibration, low noise and high energy saving.

4). Compact structure, maximizing the use of cabinet space.

5). Installation method: foot mounting, flange mounting with large and small flanges, easy to choose.

6). For solid shaft output, the average efficiency is 96% in the two stage, 94% in the three stage, and the average efficiency of the R combination is higher.

Working conditions：

• . Max.speed of high-speed shaft shall not be more than 1500r/min.
  2). Peripheral speed of gear shall not be more than 10m/s.
  3). Working environmental temperature is -40~+45°C.

Models：

R37/R47/R57/R67/R77/R87/R97/R107/R137/R147/R167

RF37/RF47/RF57/RF67/RF77/RF87/RF97/RF107/RF137/RF147/RF167

RX57/RX67/RX77/RX87/RX97/RX107

RXF57/RXF67/RXF77RXF87/RXF97/RXF107

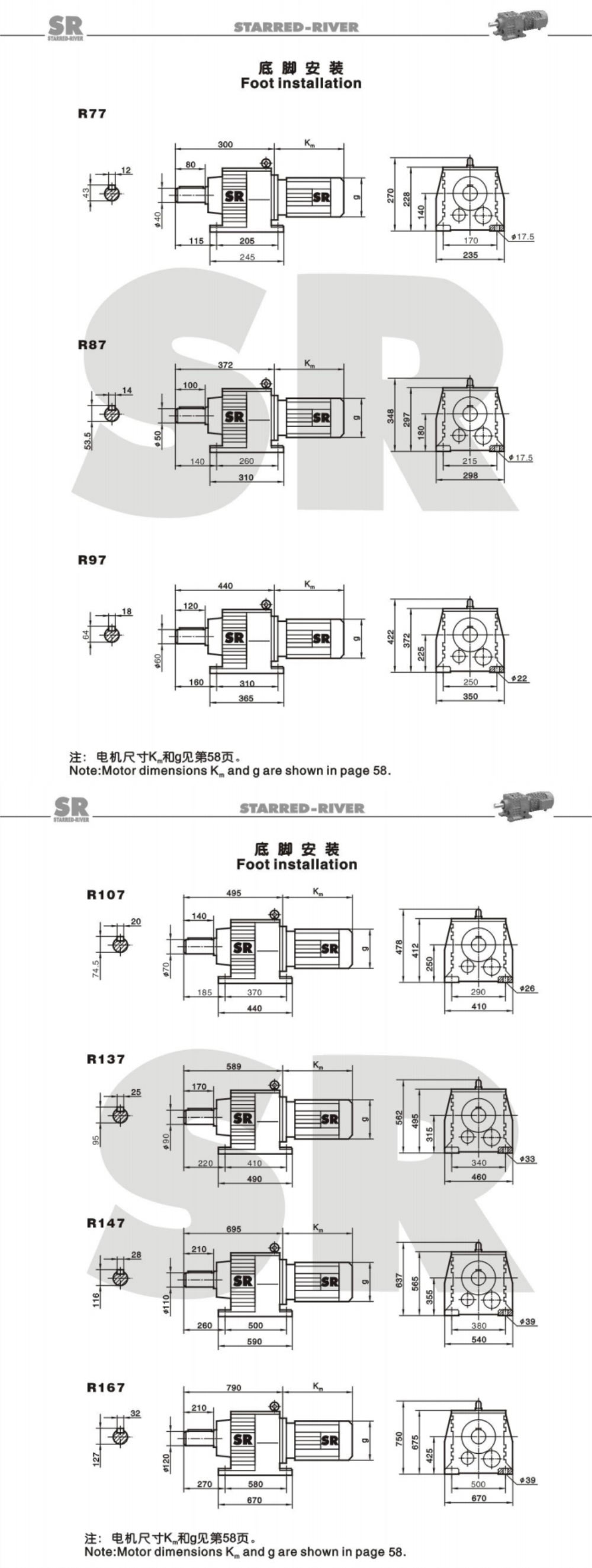

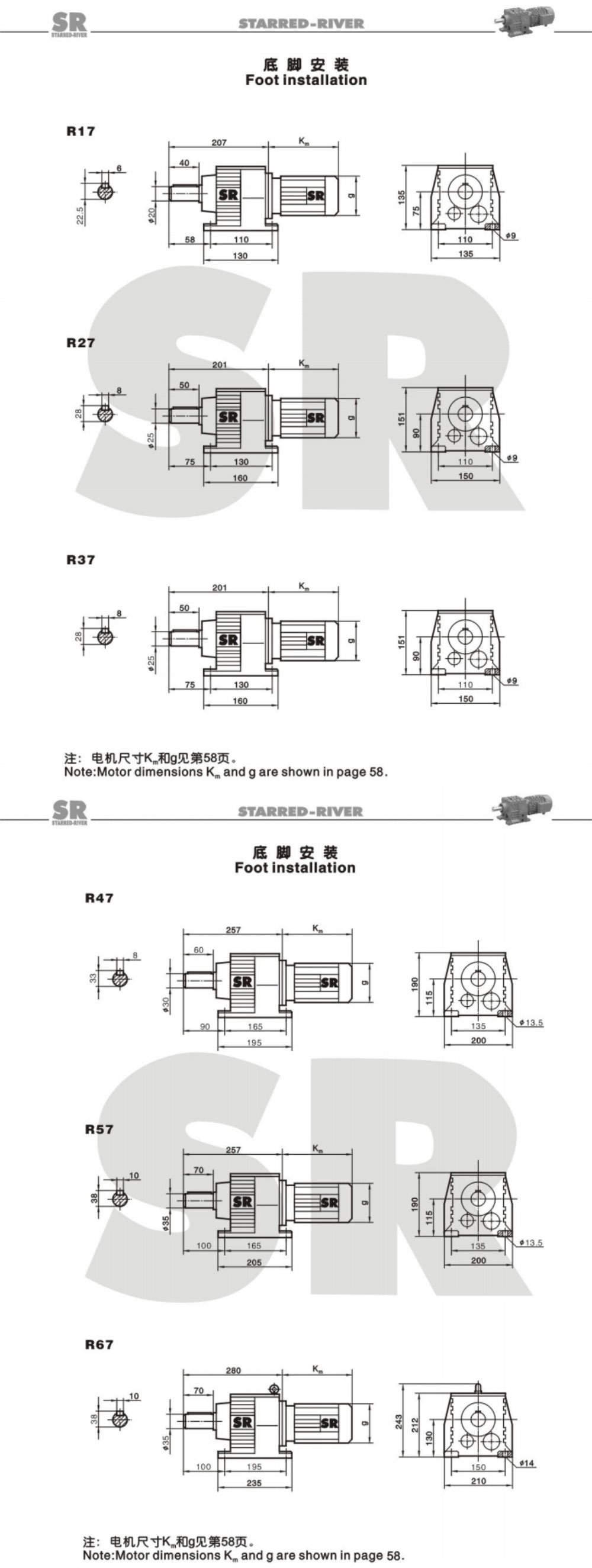

Product pictures:

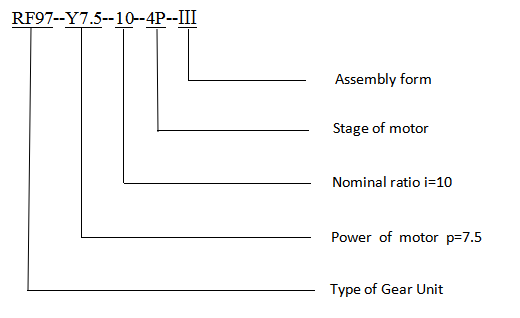

Order symbol:
